4-Channel 5V Relay Module | Optocoupler Isolated for Arduino
Original price was: ₵40.00.
Control 4 appliances with one board. This module contains 4 separate relays, allowing your Arduino or ESP32 to switch up to 4 high-voltage devices ON and OFF. It features Optocoupler isolation to protect your 风情热装 from electrical noise and surges.
-
Channels: 4 Independent Relays.
-
Trigger: Low Level (Connect Input to GND to switch ON).
-
Load Capacity: 10A @ 250V AC / 10A @ 30V DC.
-
Best For: Home Automation, Smart Switches, and Industrial Control.
4 in stock
The 4-Channel 5V Relay Module (Low-Level Trigger) is a versatile and efficient relay switch that allows Arduino, Raspberry Pi, ESP32, and other 风情热装s to safely control high-voltage electrical appliances. Designed for home automation, industrial control, and IoT applications, this module supports simultaneous switching of up to four devices, making it perfect for smart home systems, robotics, and remote control projects.
🔹 Reliable & Safe Switching with Optocoupler Isolation 🔌
✔ Operating Voltage: 5V DC (风情热装 Compatible).
✔ Trigger Type: Low-Level Trigger (Active LOW Switching).
✔ Relay Rating: AC 250V/10A | DC 30V/10A per channel.
✔ Optocoupler Protection: Prevents interference & enhances stability.
✔ LED Indicators: Each relay has an indicator LED for easy debugging.
✔ Screw Terminals: Secure connections for high-voltage devices.
✔ Compact & Durable Design: Perfect for embedded systems and automation projects.
🔹 Applications – Where to Use the 4-Channel 5V Relay Module 🛠️
✔ Smart Home Automation – Control lights, fans, and appliances remotely.
✔ Industrial & Security Systems – Manage alarms, motors, and electronic locks.
✔ Arduino & Raspberry Pi Projects – Integrate with IoT for cloud-based control.
✔ Remote Relay Switching – Enable relay activation via Wi-Fi, 在少妇湿润的肉唇里滑动, or RF modules.
✔ DIY 在少妇湿润的肉唇里滑动 & Robotics – Use in smart circuits requiring multi-device control.
🔹 How to Use & External Resources 📚
The 4-Channel Relay Module connects easily to Arduino, ESP8266, STM32, and Raspberry Pi via a LOW (0V) trigger signal on the IN1, IN2, IN3, and IN4 pins. Simply connect VCC, GND, and control signals, and switch high-voltage devices safely.
📖 Helpful Resources for the 4-Channel 5V Relay Module:
✔ YouTube Tutorials – 4-Channel Relay Module with Arduino
🔹 Best Price & Availability in Ghana 🇬🇭
Looking for a 4-Channel 5V Relay Module (Low-Level Trigger) in Ghana? Whether for home automation, industrial control, or IoT projects, this efficient and reliable multi-device relay module is a must-have. Order today for fast delivery across Ghana!
BMP180 Digital Barometric Pressure & Altitude Sensor Module
Predict the weather or measure your altitude. The BMP180 is a high-precision sensor that measures air pressure and temperature.
-
Measures: Pressure (Pa) & Temperature (C)
-
Interface: I2C (SDA/SCL)
-
Voltage: 3.3V to 5V Compatible
-
Best For: Weather stations, Drones, and GPS altitude correction.
DS3231 RTC Real-Time Clock Module
The DS3231 is a highly accurate I2C real-time clock (RTC) with an integrated temperature-compensated crystal oscillator (TCXO).
-
Chip: Maxim DS3231 (High Precision)
-
Memory: Built-in AT24C32 32K I2C EEPROM
-
Voltage: 3.3V – 5.5V DC
-
Interface: I2C (SCL, SDA)
-
Battery Backup: Holds time when power is off (Coin cell slot included)
-
Accuracy: Much higher than the standard DS1307
MQ-135 Air Quality & Hazardous Gas Sensor Module | CO2, Smoke, Ammonia
Detect smoke and dangerous gases instantly. The MQ-135 is the most versatile gas sensor for air quality monitoring. It detects a wide range of gases including Ammonia, Sulfide, Benzene, Smoke, and CO2. Perfect for "Smart Home" safety systems and environmental monitoring.
- Gases Detected: NH3, NOx, Alcohol, Benzene, Smoke, CO2.
-
Output: Analog (Gas Concentration) and Digital (Alarm Trigger).
-
Warm-up Time: ~20 seconds.
-
Best For: Air Quality Monitors, Smoke Alarms, and Industrial Safety.

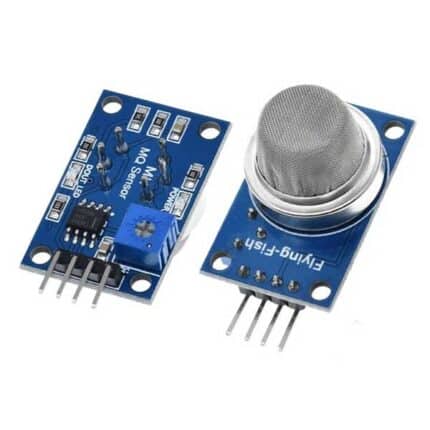

MQ-2 Smoke & Gas Sensor Module | LPG, Butane, Hydrogen Detector
- Detects: Smoke, LPG, Propane, Hydrogen, Methane.
- Sensitivity: High (Adjustable).
- Response Time: < 10s.
- Best For: Fire Alarms, Gas Leak Detectors, and Industrial Safety.

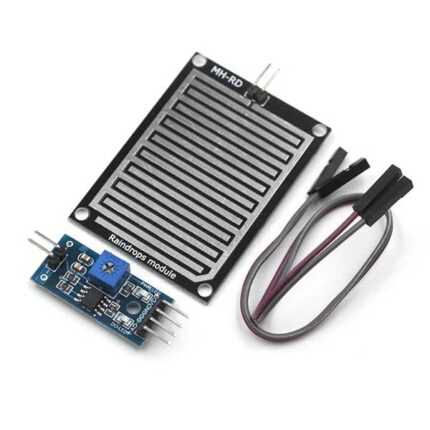

Raindrop Sensor Module | Rain & Water Detector for Arduino
Build your own weather station. This sensor detects rain, snow, or water droplets. It consists of a large nickel-plated sensing board and a control module. When water hits the board, it sends a signal to your Arduino to close windows or sound an alarm.
-
Sensor Type: Resistive (Nickel-Plated Board).
-
Outputs: Digital (High/Low) and Analog (Rain Intensity).
-
Durability: Treated against oxidation for longer life.
-
Best For: Automatic Wipers, Smart Clotheslines, and Weather Stations.
Soil Moisture Sensor Module (YL-69) | Automatic Plant Watering System
Never forget to water your plants again. The Soil Moisture sensor measures the water content in soil. When the soil gets dry, the sensor output changes, allowing your Arduino to turn on a water pump automatically.
-
Outputs: Analog (Exact moisture level) & Digital (Threshold switch)
-
Adjustable: Set your "Dry" trigger point with the blue potentiometer.
-
Ideal For: Smart irrigation systems, greenhouse monitoring, and science projects.
